Specifications & Features:

• Strasbaugh Model 6DF- New in 2016
• In excellent condition
• Includes Fully Loaded Control Panel

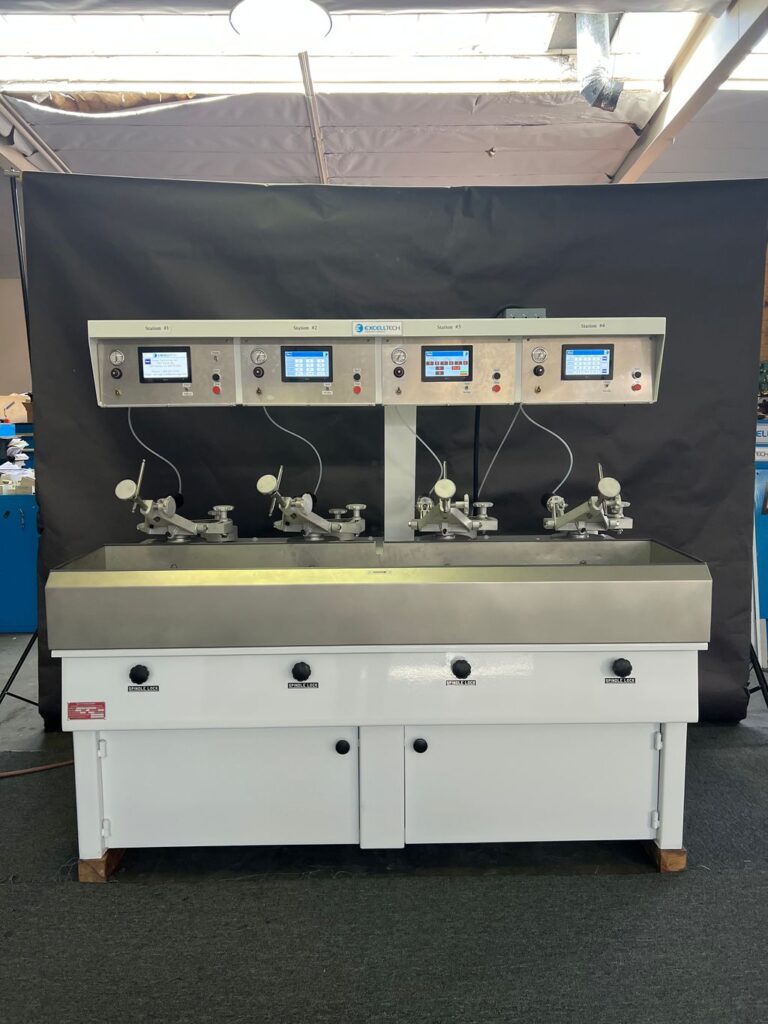

Strasbaugh (4) Spindle 16”/400 mm Specs & Features

• Strasbaugh Model 6DE– Excell 2022/Rebuild w/16’ Parts capacity.

• Includes : (4) 1.5HP HP DC spindle motors –

• Includes: (4) 3⁄4 HP DC motors for the Eccentric/Oscillating arms

• Includes: (4) Air cylinders for “pressure down”

Strasbaugh – Excell/Rebuild down to the frame, OEM Spec, 2020 – Excell  (2) & (4) Spindle

Grinder/Polishers with 20″ centers

• New 5″ HMI color touch screen w/ easy to ready characters – with digital timer: displays both spindle speeds and eccentric speeds

• Including two DC drive systems per station

• Spindle to spindle distance: 20” Maximum part size: 16:” diameter

• Pan Size :(2) spindle 40” wide x 21” deep & (4) Spindle 80” wide x 21” deep x

  9.5” high. w/Drain hole

•  Optional programmable speeds and air pressure down

• Own w/ Confidence: We over 30 years of expert rebuilding fab equipment.

• 12 Month warranty

Please Note: The Strasbaugh is in the final stage of reassembly, the slurry

distribution system & other components are yet to be installed

Features & Specifications:

– STRASBAUGH 4 Spindle – Model 6Y4/6DA Type

– DC Drive System- (2) DC motors per station.

– Spindle Speeds 1 to 300 RPM

– Eccentric Speeds 1 to 200 RPM

– Distance between spindles: 20”

– w/New Slurry Pan – Stainless Steel 21” x 80”

– w/New Slurry Distribution System & Stainless Steel slurry tank

– Distance from center of spindle to back of pan: 9.5”

– Off Set +/- 3” & Polishing Head 0 to 8”.

– Voltage: 220 volts 1PH.

– Dimensions: 80” left to right x 37.5” deep x 36” high

– Weight: 2,500 lbs.

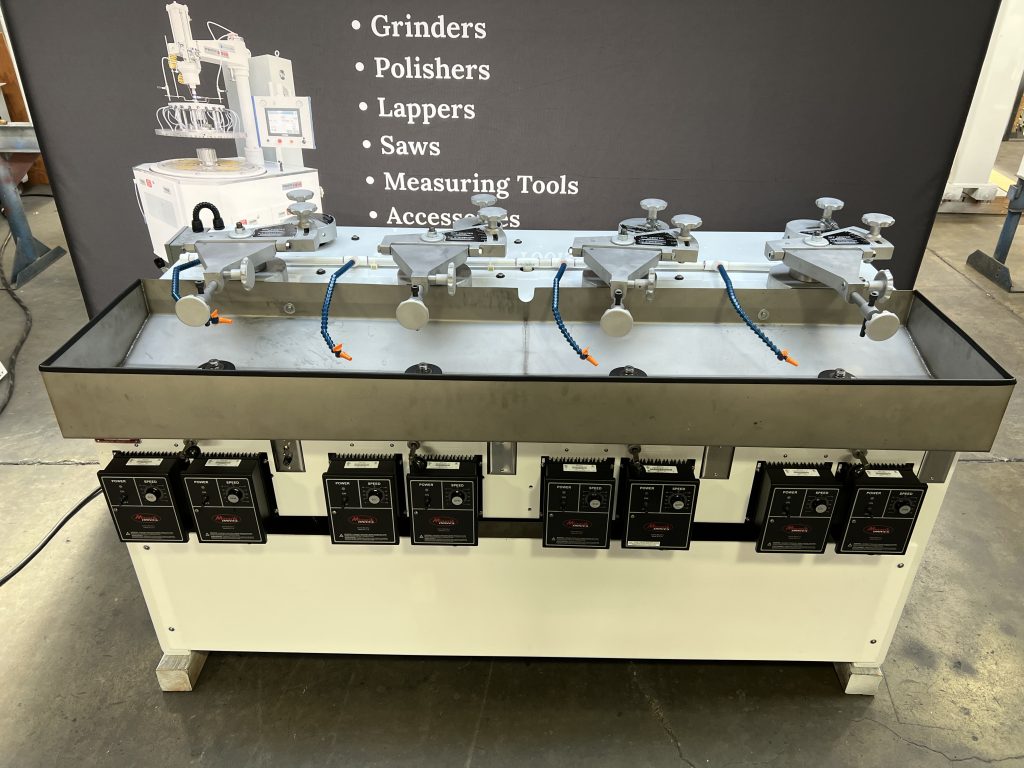

Rebuilt to NEW OEM Spec: w/DC Drive System w/Each station has (1) DC Motor

for the Spindle & (1) DC Motor for the Eccentric; Variable Speed Controllers for the Spindle &

Eccentric for each station conveniently located just below slurry pan; Maximum capacity 16”;

w/Stainless Steel Pan 21” x 80”. Distance between spindles: 20”; w/New Slurry Distribution

System w/(4) Adjustable lines for each spindle w/Stainless Steel Slurry Tank & Pump; New High

Quality Paint “ Excell White” . Includes:(12) Months warranty. Sold FOB

Truck San Carlos, Ca. Optional: Add (4) Digital Timers and/or Air Down

Eccentric speeds– please request.

– (4) Spindle Saga Grinder/Polisher made in the USA

 – Includes: DC Drive system w/2 motors per spindle

 – Eccentric RPM: 1-90 RPM

 – Controls include: Digital Timer; Air Down Switch; Spindle and Eccentric Speed dials; air regulators

 – Capacity 12″

 – Distance between spindles: 20″

 – Spindle Size: 1-8″ TPI

 – Pan Size 17.5″ x 80″

 – Pan type: Stainless Steel

 – Overall dimensions: 80″ x 36″ x 72″

 – Weight: 2,000 lbs

 – 12 month Warranty

– In process of being rebuilt

– 12″ Capacity

 – DC Drive

 – Distance between centers: 14.5″

 – Full set of controls – including Digital Timers, RPM Display, and Air Down System

 – Stainless Steel Pan Size: 59″ x 17.5″ x 8″ H

 – Overall Dimensions: 59″ W x 36″ D x 72″ H

 – Voltage 220, 1PH

 – Will include new high quality paint finish: “Excell White”

 – Long Term Warranty

Specs & Features:

 – 1 Spindle Saga Model 100R16 Ginder/Polisher

 – Made in the USA

 – Includes: DC Drive System w/2 Motors

 – Spindle RPM: 1-180 RPM

 – Eccentric RPM: 1-90 RPM

 – Controls include: Digital Timer; Air Down switch; Spindle & Eccentric Speed dials; Air Regulators

 – Capacity: 16″

 – Spindle Size: 1-8″ TPI

  – Overall dimensions: 28″ x 36″ x 48″

 – Weight: 500 lbs

 – Warranty 12 months

– 16″ Capacity

 – Variable speed with VFD and 3-Step Pulley System

 – 20″ distance between centers

 – Spindle Speeds 1-300 RPM

 – Stainless Steel slurry Pan

 – 120″ W  x 40″ D x 72″ H

 – 6 Month Warranty

– 32″ Capacity DC Machine

– New easy to use Color Touch Screen

– Programmable controls with Recipes
